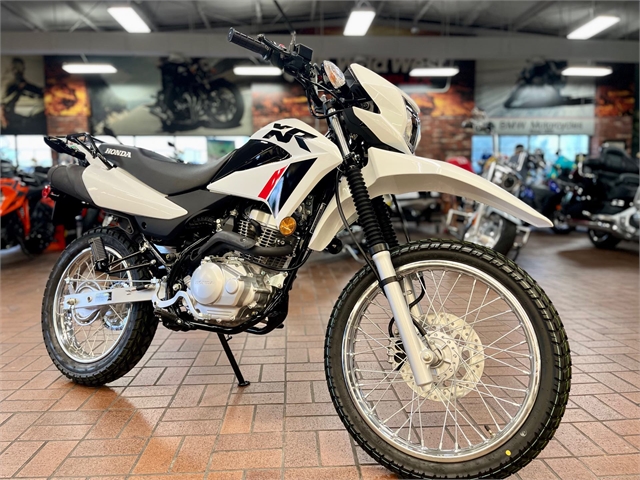

2023 Honda XR150L

Stock #HM1768
MSRP: $2,971 USD
Check Availability Hi, my name is and I'm interested in this 2023 Honda XR 150L . I'm in the area and you can reach me at or by phone at .

  • Status:
    New
  • Vehicle:
    2023 Honda XR150L
  • VIN:
    3H1KD1317PD001768
  • Model Number:
    XR150LP
  • Mileage:
    1 miles
  • Color:
    White
  • Stock Number:
    HM1768
  • Title:
    Clear
  • Location:
    Wild West Motoplex
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    9.4
  • Front Brake Diameter (mm):
    240
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    4.3
  • Rear Brake Diameter (mm):
    110
  • Rear Brake Type:
    Drum

ENGINE

  • Bore (in):
    2.26
  • Bore (mm):
    57.3
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    22
  • Carburetor:
    Yes
  • Compression Ratio:
    9.5
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    149
  • Displacement (ci):
    9.1
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric
  • Stroke (in):
    2.28
  • Stroke (mm):
    57.8
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    32.8
  • Seat Height (mm):
    833
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Tail Bag Material:
    Vinyl
  • Tail Bag Trim:
    Plain

SUSPENSION

  • Front Suspension Size (in):
    1.2
  • Front Suspension Size (mm):
    31
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    7.1
  • Front Travel (mm):
    180.3
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    Pro Link®
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    5.9
  • Rear Travel (mm):
    150

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    2.8
  • Fuel Capacity (l):
    10.6
  • Fuel Capacity Reserve (gal):
    0.9
  • Fuel Capacity Reserve (l):
    3.4
  • Ground Clearance (in):
    9.6
  • Ground Clearance (mm):
    243.8
  • Height (in):
    44.5
  • Height (mm):
    1130.3
  • Length (ft):
    6.81
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.7
  • Length (in):
    81.7
  • Length (mm):
    2075.2
  • Wet Weight (kg):
    128
  • Wet Weight (lbs):
    282
  • Wheelbase (in):
    53.5
  • Wheelbase (mm):
    1359
  • Width (in):
    31.9
  • Width (mm):
    810.3

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    90/90-19
  • Front Tire Aspect Ratio:
    90
  • Front Tire Width:
    90
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    110/90-17
  • Rear Tire Aspect Ratio:
    90
  • Rear Tire Width:
    110
  • Rear Wheel Diameter:
    17
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
