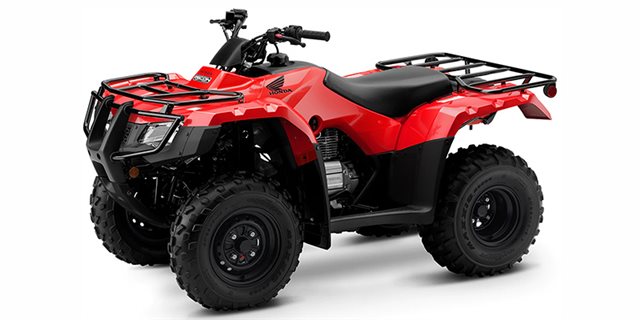

2023 Honda FourTrax Recon ES

Stock #HA1589
MSRP: $4,949 USD

140 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Honda FourTrax Recon ES . I'm in the area and you can reach me at or by phone at .

  • Status:
    New
  • Vehicle:
    2023 Honda FourTrax Recon ES
  • VIN:
    1HFTE54A5P4701589
  • Model Number:
    TRX250TEP
  • Color:
    Black Forest Green
  • Stock Number:
    HA1589
  • Title:
    Clear
  • Location:
    Wild West Motoplex
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    5.1
  • Front Brake Diameter (mm):
    130
  • Front Brake Type:
    Dual Sealed Hydraulic Drum
  • Rear Brake Diameter (in):
    5.5
  • Rear Brake Diameter (mm):
    140
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1

ENGINE

  • Bore (in):
    2.7
  • Bore (mm):
    68.5
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    22
  • Carburetor:
    Yes
  • Compression Ratio:
    9.2
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    229
  • Displacement (ci):
    14
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric / Pull
  • Stroke (in):
    2.45
  • Stroke (mm):
    62.2
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Brush Guard:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    31.2
  • Seat Height (mm):
    792.5
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    15
  • Capacity (kgs):
    29.9
  • Capacity (lbs):
    33
  • Capacity (lbs):
    66

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    5.1
  • Front Travel (mm):
    129.5
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    4.9
  • Rear Travel (mm):
    124.5

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    2.4
  • Fuel Capacity (l):
    9.1
  • Fuel Capacity Reserve (gal):
    0.6
  • Fuel Capacity Reserve (l):
    2.3
  • Ground Clearance (in):
    6
  • Ground Clearance (mm):
    152.4
  • GVWR (kgs):
    370.1
  • GVWR (lbs):
    816
  • Height (in):
    42.1
  • Height (mm):
    1069.3
  • Length (ft):
    6.25
  • Length (ft/ft):
    6
  • Length (ft/in):
    3
  • Length (in):
    75
  • Length (mm):
    1905
  • Towing Capacity (kgs):
    226.8
  • Towing Capacity (lbs):
    500
  • Turning Radius (ft):
    8.5
  • Wet Weight (kg):
    201
  • Wet Weight (lbs):
    443
  • Wheelbase (in):
    44.5
  • Wheelbase (mm):
    1130.3
  • Width (in):
    40.7
  • Width (mm):
    1033.8

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 22 x 7-11
  • Front Tire Diameter (in):
    22
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    11
  • Rear Tire (Full Spec):
    Maxxis® 22 x 10-9
  • Rear Tire Diameter (in):
    22
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    9
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
